Zamp-Racing recommends that you periodically change shields for better vision and safety.

• Zamp RZ-44CE Helmet;
• Zamp RZ-70E Switch;
• Zamp RZ-70E Switch Graphic Helmet.

NOTE: DO NOT USE power tools or overtighten screws when changing shields.

Step 1 - Lay a towel on a flat surface and set the helmet on it.

Step 2 - Remove the shield pivot tensioners on each side. (This is the smaller crew on the sides of the shield.)

Step 3 - Remove the shield pivot screws on each side. (This is the larger screw on the sides of the shield. For best results, we suggest using a quarter to loosen/tighten these screws).

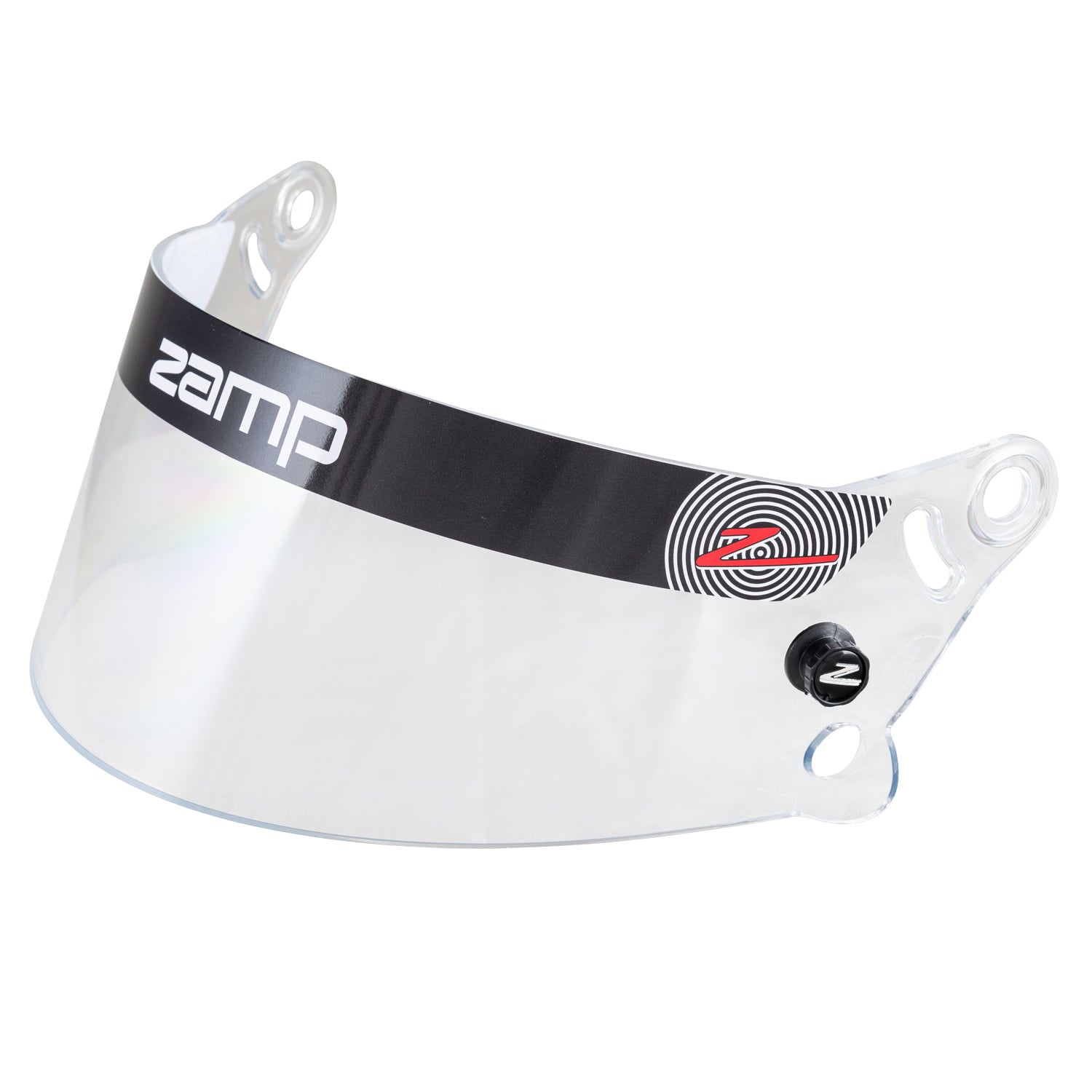

Step 4 - Remove the shield. We suggest using a soft cloth towel to wipe down the rubber seal as well as where the shield mounts to the helmet for best results.

Step 5 - Place the new shield on the helmet. There are two white washers that go between the shield and helmet, make sure these are in place before re-installing the shield pivot screws.

Step 6 - Hand thread the shield pivot screws to hold the shield in place. Once hand threaded, use a quarter to tighten until snug with the helmet shell. Do not over-tighten.

Step 7 - Hand thread the shield pivot tensioners, then tighten to desired tension for shield movement.
